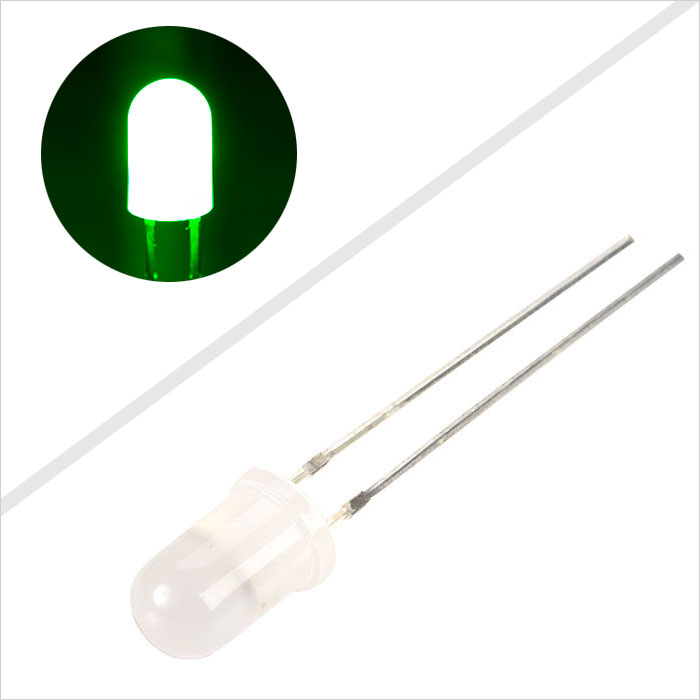

Green 5mm through hole LED. Features 200mcd and 510nm wavelength. This unique LED has a diffuser coating which emits green light in all directions, 360 degrees around, from end and bottom, just like a filament bulb. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

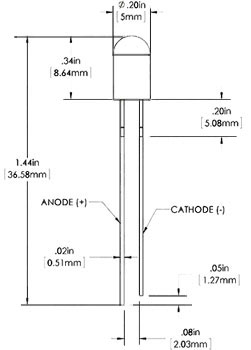

Dimensional Drawings

TECHNICAL DETAILS
Continuous Forward Current:    20 mA
Forward Voltage:    3.2V
LED Color:    Green
LED Package:    5 mm (T-1 3/4)
Lens:    Diffused
Lumen:    2 Lumen
Maximum Forward Voltage:    3.4V
Millicandela:    200mcd
Operating Temperature:    -20~+80 °C (-4~+176 °F)
Peak Forward Current:    100mA
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -30~+100 °C
Total Power Consumption:    0.064 Watts
Tube Diameter:    T1-3/4
Viewing Angle:    360 degree
Wavelength:    510 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
