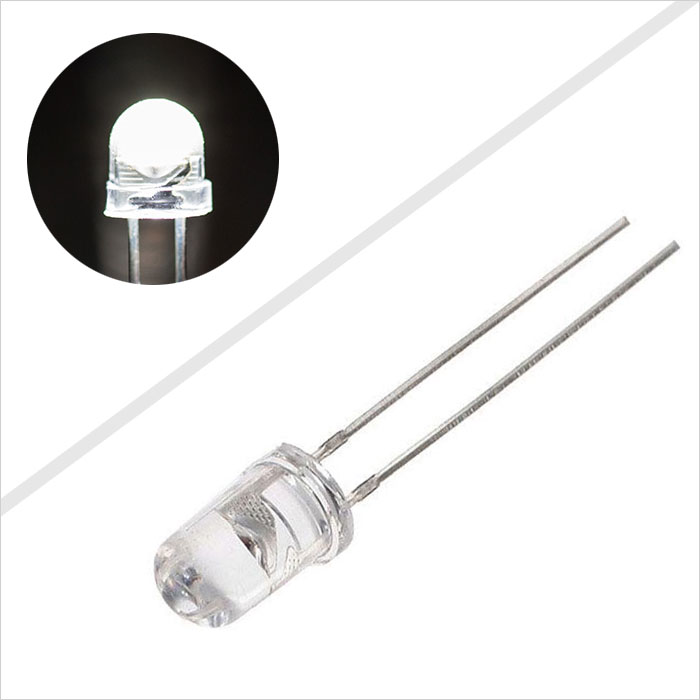

5mm through hole component LED in Cool White. Features 4,500 millicandela, 5450K color temperature, and a wide 75 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

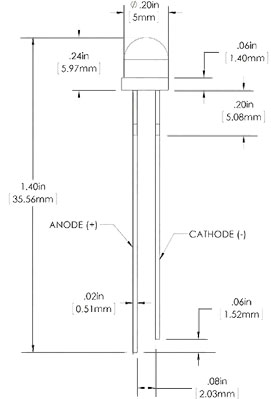

Dimensional Drawings

TECHNICAL DETAILS
Color Temperature:    5450 K
Continuous Forward Current:    20 mA
Forward Voltage:    3.5V
LED Color:    Cool 5450K
LED Package:    5 mm (T-1 3/4)
Lens:    Clear
Lumen:    6 Lumen
Maximum Forward Voltage:    4V
Millicandela:    4500mcd
Operating Temperature:    -20~+45 °C (-4~+113 °F)
Peak Forward Current:    80mA
Power Dissipation:    100mW
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -40~+65 °C
Total Power Consumption:    0.07 Watts
Tube Diameter:    T1-3/4
Viewing Angle:    75 degree

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
