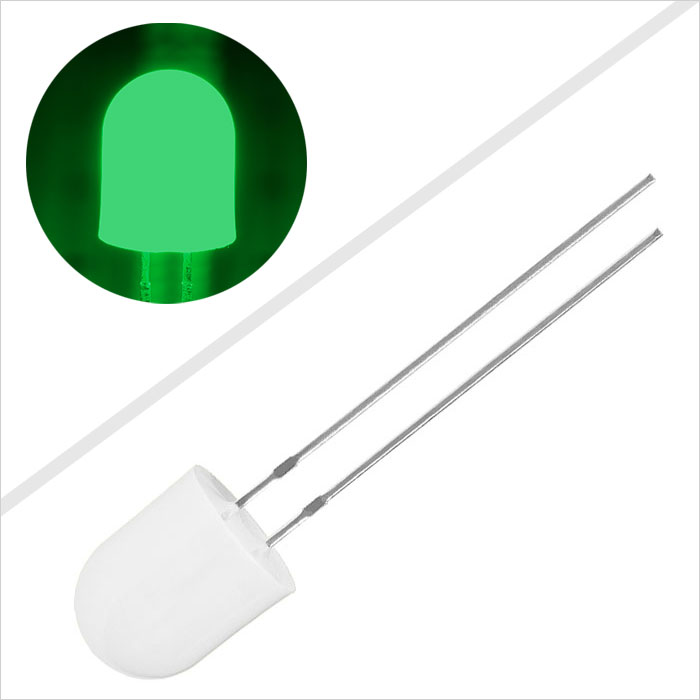

    8mm Diffused Green Super Bright Round Through Hole LED - 510 nm - 360 Degree Viewing Angle

      (4 Reviews) | Write a review
    SKU: RL8-G50-D
    Discontinued
    Starting at: $1.29
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

    Green 8mm through hole LED. Features 400mcd and 510nm wavelength. This unique LED has a diffuser coating which emits green light in all directions, 360 degrees around, from end and bottom, just like a filament bulb. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

    Dimensional Drawings


    TECHNICAL DETAILS
    Continuous Forward Current:    60mA
    Forward Voltage:    3.2V
    LED Color:    Green
    LED Package:    8 mm
    Lens:    Diffused
    Lumen:    5 Lumen
    Maximum Forward Voltage:    3.4V
    Millicandela:    400mcd
    Operating Temperature:    -20~+80 °C (-4~+176 °F)
    Peak Forward Current:    100mA
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -30~+100 °C
    Total Power Consumption:    0.192 Watts
    Viewing Angle:    360 degree
    Wavelength:    510 nm
    Package Weight: 0.02oz (0kg)
    Package Dimensions: 0.47" (1cm) x 0.36" (1cm) x 0.36" (1cm)

    Applications / Uses
    Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
