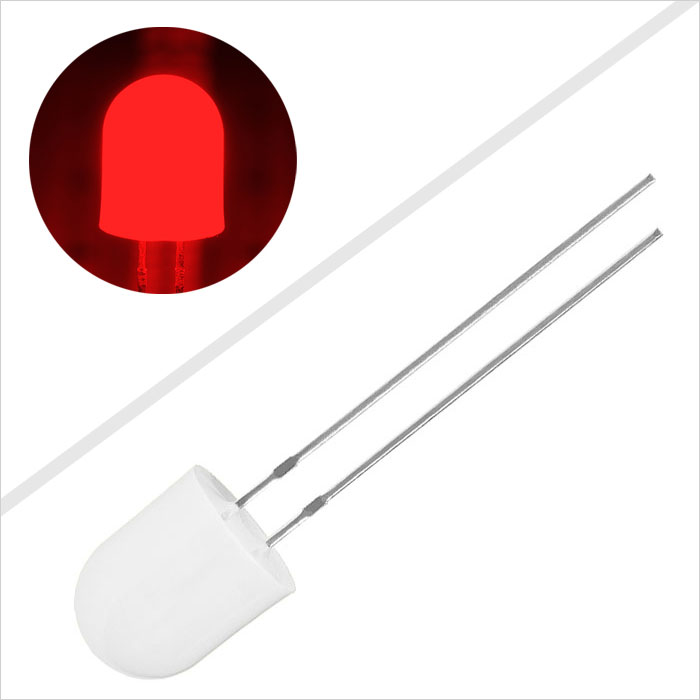

Red 8mm through hole LED features 2500 millilumens and 625nm wavelength. This unique LED has a diffuser coating which emits Red light in all directions, 360 degrees around, from end and bottom, just like a filament bulb. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

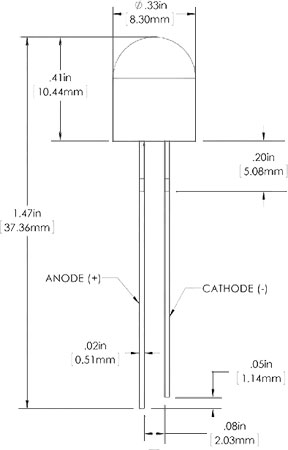

Dimensional Drawings

TECHNICAL DETAILS
Continuous Forward Current:    60mA
Forward Voltage:    1.9V
LED Color:    Red
LED Package:    8 mm
Lens:    Diffused
Lumen:    2.5 Lumen
Maximum Forward Voltage:    2.1V
Millicandela:    200mcd
Operating Temperature:    -40~+100 °C (-40~+212 °F)
Peak Forward Current:    100mA
Reverse Current:    10µA
Reverse Voltage:    5V
Storage Temperature:    -40~+100 °C
Total Power Consumption:    0.114 Watts
Viewing Angle:    360 degree
Wavelength:    625 nm
Package Weight: 0.02oz (0kg)
Package Dimensions: 0.47" (1cm) x 0.36" (1cm) x 0.36" (1cm)

Applications / Uses
Industrial controls, Medical equipment, Communications equipment, Test and measurement, Security electronics.
