    SBL-DP2S MiBoxer DALI Colour Temperature Touch Panel DT8

      (8 Reviews) | Write a review
    SKU: SBL-DP2S
    Discontinued
    Starting at: $49.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sat,Dec,14 and Fri,Dec,20. order with 2days,9hrs and 31 min.

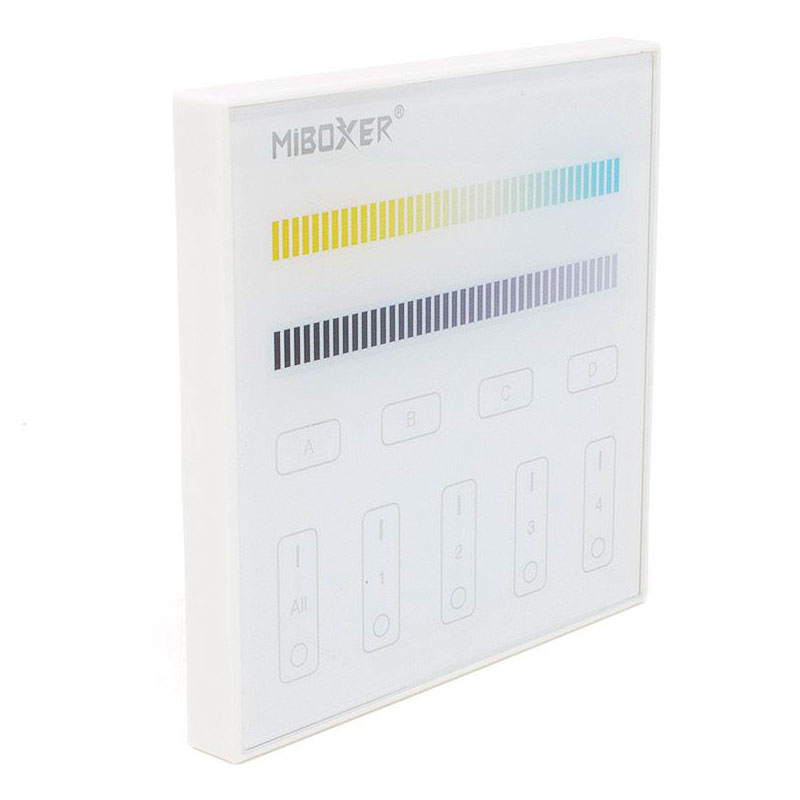

    This stylish DALI DT8 Dual White (CCT) wall panel from Mi-Boxer is an ideal product to integrate into your DALI system using standard DALI DT8 protocols.  It will enable you to control up to four zones of colour temperature adjustable lighting from Warm white (2700K) to Cool White (6500K) with four programmable scenes.  The wall panel is powered from the DALI BUS so no additional power supplies are required.  The signal from the wall panel is sent along the DALI BUS lines to control the lighting that is set to the same DALI address.
    The various parameters can be set and adjusted using the function buttons and digital display on the rear of the wall panel.  Please set these as required, details of which can be found in the included manual.
    When setting up your DALI system why not consider the other DALI products available in the Mi-Boxer range, from wall panels to DALI Dimmers and DALI BUS power supplies, all our DALI products work together seamlessly creating the ideal DALI network.

    Feature

    1. DALI DT8 Dimming slider
    2. Built-in programs
    3. Optional sound on button press
    4. Quick and easy to pair with receivers
    5. 5 Year Guarantee

    Technical Specification


    Manufacturer:    Mi-Light / MiBoxer
    Product Type:    Controller / Receiver
    IP Rating:    IP20 Non-Waterproof
    Guarantee Period:    5 Years
    Input Voltage:    DALI Bus Powered
    Connectivity:    DALI DT8 Protocols
    Size:    L86 x W33 x H86mm
    Dimmable:    No
    Wireless Range:    Up to 30 metres
    Modulation Method:    GFSK
    Transmitting Power:    6dBm
    Standby Power Consumption:    <4mA@16V
    Operation Frequency:    2.4GHz
    Battery Type:    DALI Bus Standard: IEC62386
    Operating Temp:    -10 to 40ºC
